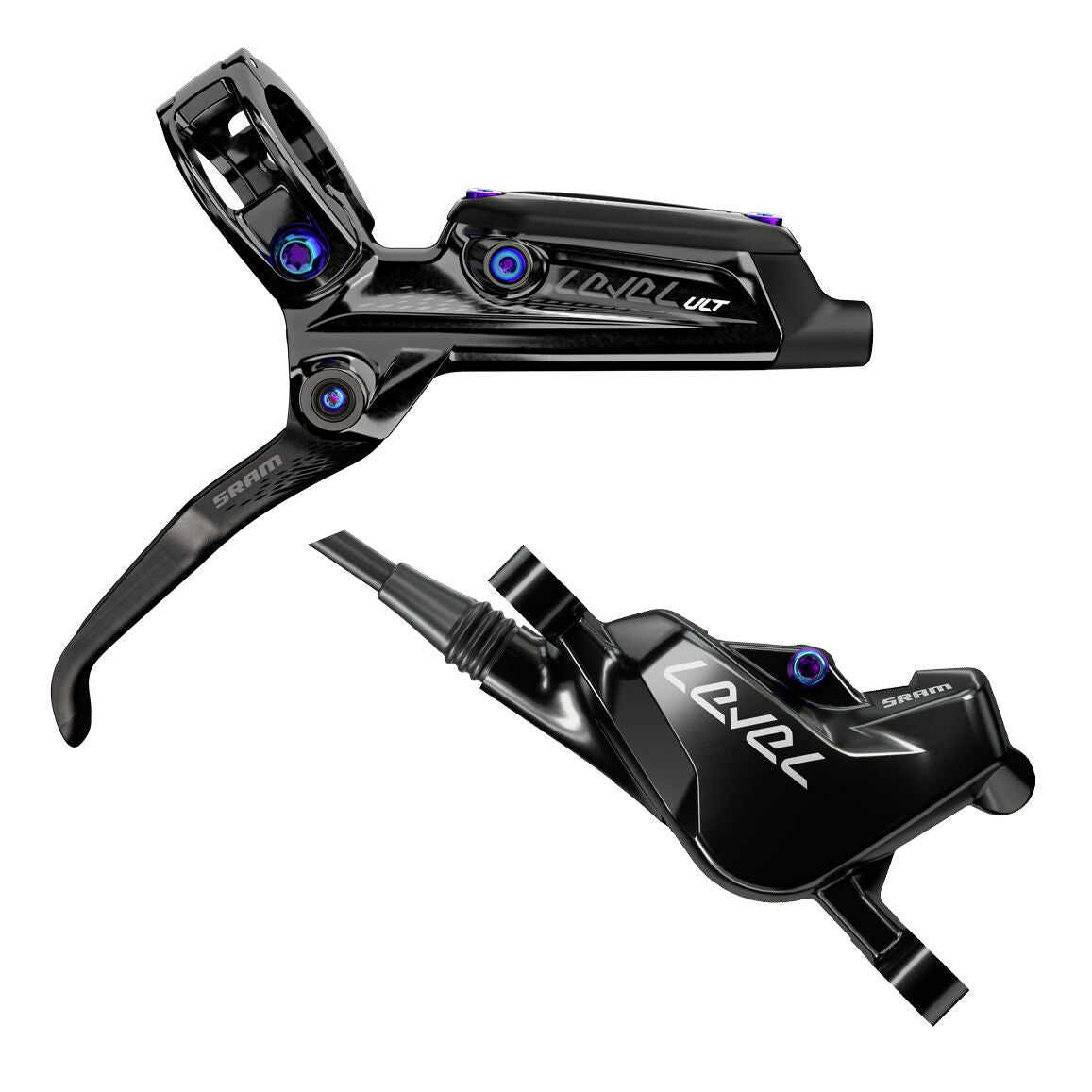

Sram Level Ultimate Carbon Disc Brake

The weight/power ratio is the first, among many others, strong point of this brake. Featherweight: done. Assembly elements: reduced to the essentials!

In an effort to match maximum braking power with ultra-lightweight construction, Sram has created a new champion: the next-generation Level. With refined levers and calipers and an advanced heat management system, Level offers exhilarating power with excellent modulation.

Race tested
Some believe in luck, but Sram believes in engineering. Their unbeatable championship success isn't due to the alignment of the stars - it's intelligent design in perfect balance.

Two-piston performance
The power of two pistons and sealed bearings transfer even the lightest touch of the finger to the caliper with extreme efficiency. Traction and control, just when you need it.

More caliper rigidity, more braking power
With a rigid two-piece caliper, a large opening for the most aggressive organic compound pads, Level is a brake ready for any challenge.

More linear piston operation
Sram looked at every brake on the market, then built a better one. Their calipers move the pads evenly, ensuring longevity and control throughout the life of the brake.

Reach hidden
A fast bike is a light bike, including brakes. To remove grams and protect the "internals", Sram has hidden the reach adjustment. It's still a quick and easy adjustment, but it requires Luse of a tool.

Features

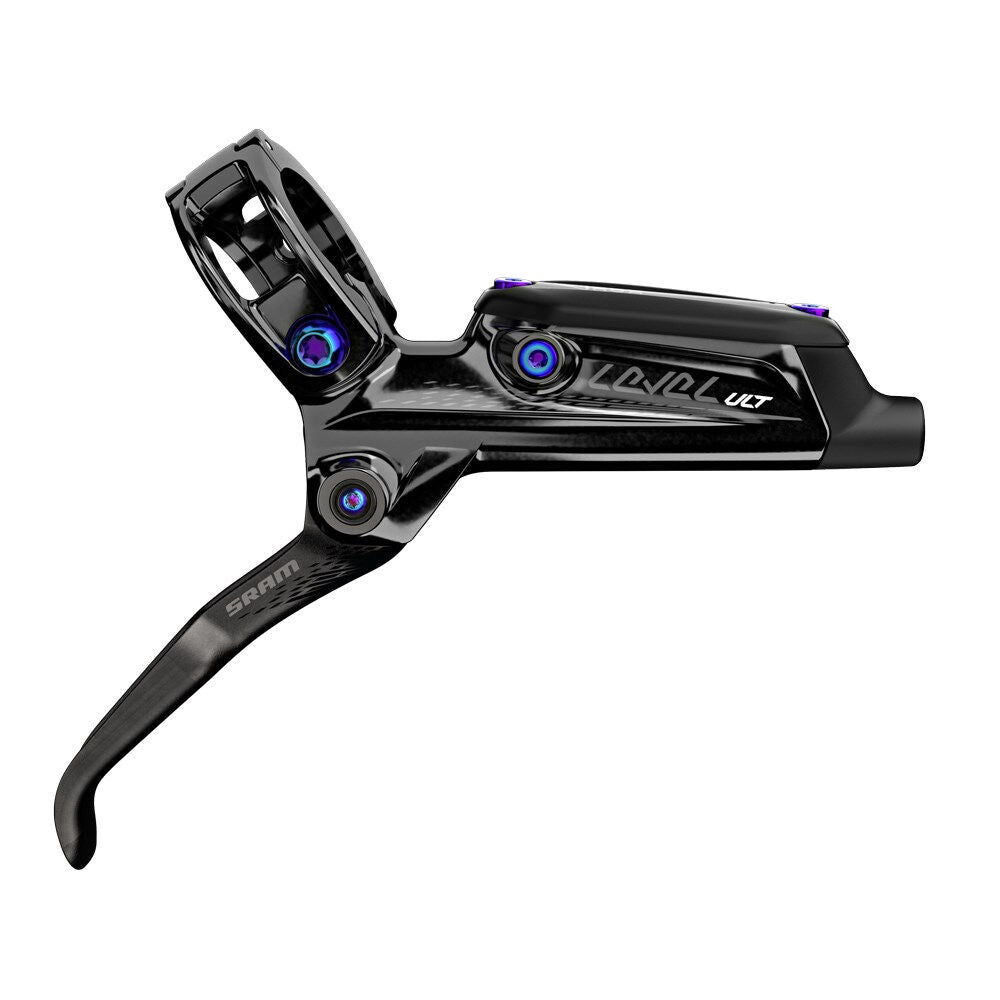

• Perfect lines: the carbon brake levers are designed, keeping in mind both the profile and the shape, to fit perfectly to the finger, also saving precious grams.
• Sealed bearings on the lever pivot provide crisp, precise actuation, reducing LFinger fatigue for the entire duration of the descent.
• Two-Piston Precision: Featuring titanium hardware and carbon levers, it's Sram's lightest and most precise two-piston brake.
• Brake lever material: Carbon.

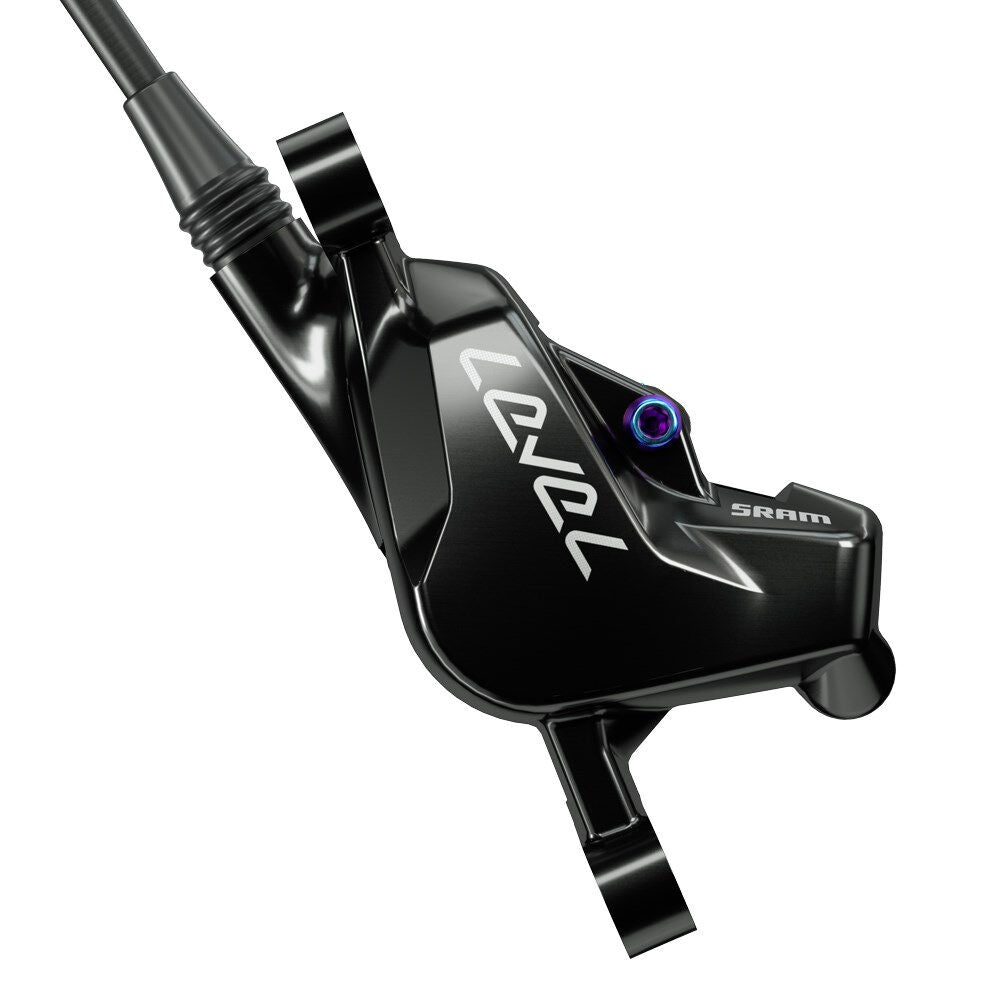

• Completely redesigned two-piston caliper.
• Pumping material: Aluminium.
• Pads: organic with aluminum backing.
• Brake fluid: DOT 5.1.
• Adjustment of the lever-handlebar distance with Allen key.
• MatchMaker
• Ambidextrous mounting.
• Titanium screws.
• Designed for Cross Country and Trail use.
• Actual front weight: 230g.
• Real rear weight: 253g.

Technologies

Bleeding Edge
The Bleeding Edge technology makes bleeding the brakes quick and easy, the design of the pump and the new bleed hole facilitate the flow of the DOT fluid, at the same time a dedicated bleed adapter (not included) seals the system, minimizing accidental leakage of the fluid and preventing air from entering the braking system.

DirectLink™
The DirectLink design of Sram brake levers offers every biker the sensation of immediate grip of the pads on the disc, ensuring any cyclist maximum control of the braking force in every situation.

DOT 5.1™
Heat is the enemy of any braking system, for this reason the innovations made in the field of heat management turn into new driving sensations. Sram noted that the DOT 5.1 fluid offers a boiling point three times higher than the classic DOT 4 and allows brake performance to be kept constant at all times, without the typical decline in performance due to overheating of the oil and pads.

Expandable Bladder
The design of the new Sram brake levers includes a completely redesigned flexible internal reservoir which allows you to regulate and reduce the drop in performance due to the presence of air bubbles inside the system. The particular shape of the tank allows you to move away Lair from the lever and push the brake fluid exactly where it is needed, thus obtaining a fluid movement of the lever upon release and reliable and constant performance.

Heat Shield
The stainless steel "Heat Shield" drastically reduces the heat exchange between pads and braking system, keeping the system temperature up to 20° lower than a traditional brake, even during the most demanding descents.

MatchMaker
The MatchMaker This way you can save the weight of the individual clamps and get a tidy and clean looking handlebar.

PiggyBack pump
The structure of the pump in the latest Sram models has been designed to guarantee optimal performance and easy use.
The PiggyBack pump offers a simple and safe method of managing the brake fluid, but also allows the same lever to be mounted on both the right and left so as to satisfy the needs of every biker without the need to reverse the brake hoses.

Timing Port Closure
A "Timing Port" is the connection area between the tank and the pumping cylinder, the Timing Port Closure technology allows the system to be isolated and pressurized once pressure is applied to the lever, this allows for incredible braking power and exceptional reliability.

Lever configuration

• Front brake: Ambidextrous lever (sheath length: 950 mm).
• Rear brake: Ambidextrous lever (sheath length: 1800 mm).
